Topic starter
20/09/2013 5:46 am
Anyone on Earth have prints for this elevator.... Help....Pause....Anyone...
20/09/2013 8:26 am
What kind of operation? Single or 2 speed ac? Constant pressure pushbutton?
Also is this elevator also located in Southern Califorina? because the S. Heller elevator company I know was based in Milwaukee WI and it would be very interesting as I never heard of one being istalled outside of the Midwest.
Topic starter
20/09/2013 9:25 pm
Single speed AC calls latch stops on the brake. Yes SoCal installation. Only one I've seen in town.
20/09/2013 10:06 pm
I think Heller might have used Keystone controllers. Big black thing with tons of fused and sometimes a screen on the controller?
If you post a pic I might be able to help.
Jim
20/09/2013 10:23 pm
I will see what I can come up with. There are still a number of old Hellers running in my area but they were bought by Westinghouse in the late 50s I belive so the Milwaukee Schinlder office might have so records if you can't find anything anywhere else.
Topic starter

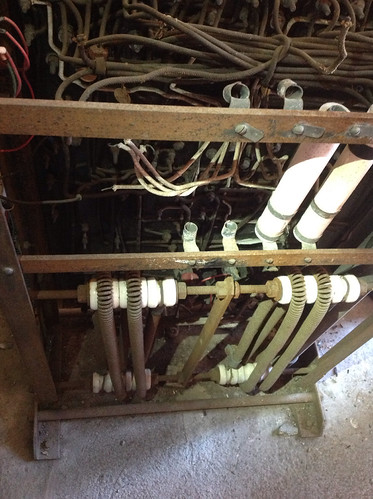

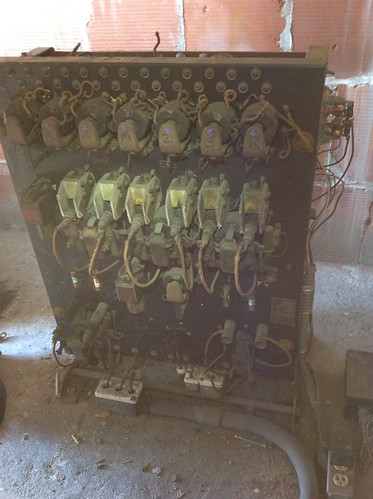

25/09/2013 12:09 pm
*(image not available in this archive)*
Topic starter
25/09/2013 12:46 pm
Topic starter
25/09/2013 12:50 pm
27/09/2013 9:59 am
I found a print that might be close if you would like to pm me your email address.
03/10/2013 2:04 am
ABE Any chance you could send one to me so I can add it to my library?
Thanks
03/10/2013 6:44 am
Just sent it.
02/12/2013 11:29 pm
Cja controller. Mosinee paper mill in Mosinee Wis has the same controller. Might want to contact them
12/01/2014 3:44 am
The mosinee unit uses 12" cast iron cams for floor stops up and down the unit was replaced w/a material lift...if you need prints,I have a set,but they are not in perfect condition
12/01/2014 10:03 am
Where do you hook your service tool? 😆
I think the proper name for the relays is "Rat Killers"or I have heard them called "Pigeon Killers" and "Bat Killers" depending on which part of the country they were installed in and the various flora and fauna unique to those enviornmnents. 😁
Last edited by Broke_Sheave; 01/12/14 02:05 AM.
